SprAIpaint

Status Quo

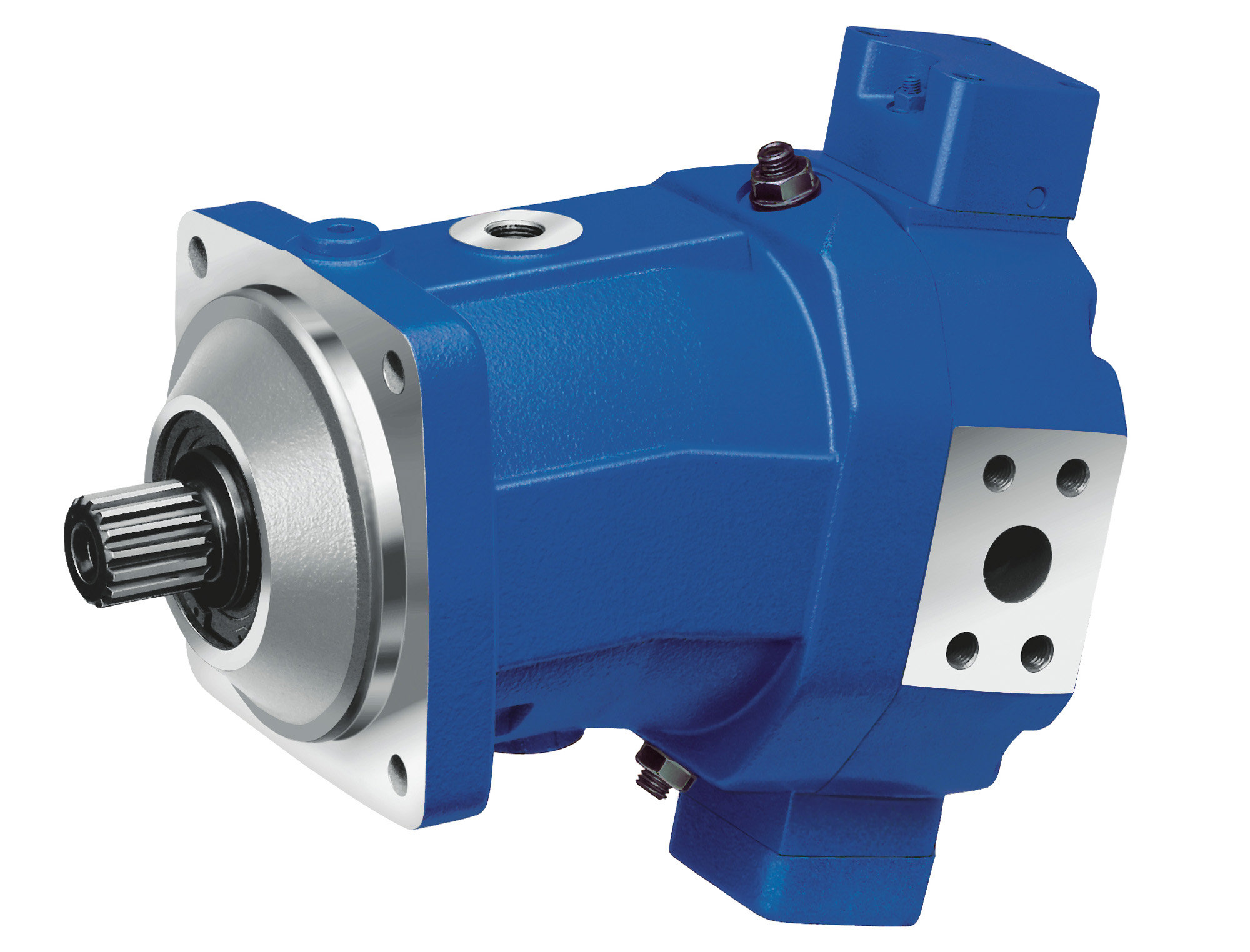

Our customer produces & paints industrial automation equipment, using manual spray-painting with 4 painters per shift. The current process involves manually painting a product that feature complex geometries with ribs and undercuts, making uniform coating application challenging.

Products are hung at different mounting points depending on their center of gravity, and single-stage paint is applied over pre-primed surfaces using a paint gun.

Goal

Develop an automated painting cell that can deal with complex geometries, and high variance in product configurations.

• Scan part geometries, because CAD data is not available for all product variants
• Automatically create painting paths using a "classic" algorithm, or a hybrid AI-based approach
• Ensure full surface coverage on complex geometries, while avoiding paint runs and overpainting
• Handle high variance in product configurations

State of the Art

Current research and existing solutions include:

• Fraunhofer Institute: Previously worked on similar automation but struggled with complex geometries (reference project)
• Academic Research: A lot of research exists on path planning, modeling paint application, and simulating robotic painting
• Commercial Solutions: Most industrial robot OEMs offer automated painting solutions, usually for parts with less variance and a focus on high-volume production

Proposed Solution

graph TB
    %% Styles
    classDef primary fill:none,stroke:#64CEE4,stroke-width:2px,rx:10px
    classDef defaultBackground fill:#f5f5f5,stroke:#f5f5f5,stroke-width:20px,rx:40px
    classDef primaryBackground fill:#C5F1F7,stroke:#C5F1F7,stroke-width:20px,rx:40px

    subgraph physicalSub["Physical System"]
        Product[Product Hanging on Rotating Jig]
        Robot[Robotic Arm]
        Scanner[3D Scanner]
        Paint[Paint Applicator]
        Table[Rotating Jig]
    end

    subgraph controlSub["Control Layer"]
        PLC[Industrial PLC]
        RobotCtrl[Robot Controller]
        TurntableCtrl[Rotating Jig Controller]
        ScannerCtrl[Scanner Controller]
    end

    subgraph aiSub["AI Workstation"]
        PathPlanning[AI Path Planning]
        ScanProc[Scan Processing]
    end

    ScanProc -->|Geometry Data| PathPlanning
    CAD[CAD Database] -.->|Reference Models| PathPlanning
    PathPlanning -->|OPCUA| PLC

    PLC -->|Control Signals| RobotCtrl
    PLC -->|Sync Commands| TurntableCtrl
    PLC -->|Trigger Commands| ScannerCtrl

    RobotCtrl -->|Motion Control| Robot
    TurntableCtrl -->|Rotation Control| Table
    ScannerCtrl -->|Scan Control| Scanner

    Scanner -->|3D Scan| Product
    Robot -->|Paint Application| Product
    Table -->|Positioning| Product

    Robot -.->|Mounted| Paint
    Robot -.->|Mounted| Scanner

    classDef physical stroke:#0277bd,stroke-width:2px,fill:#ffffff33
    classDef control stroke:#7b1fa2,stroke-width:2px,fill:#ffffff33
    classDef ai stroke:#388e3c,stroke-width:2px,fill:#ffffff33

    class physicalSub,controlSub,aiSub defaultBackground

    class Product,Robot,Scanner,Paint,Table physical
    class PLC,RobotCtrl,TurntableCtrl,ScannerCtrl control
    class PathPlanning,ScanProc,CAD ai

3D Scanner

Industrial-grade scanners like the MetraSCAN 3D provide high precision and speed, ideal for complex geometries, but with a higher upfront cost.

Combining a stereo camera with a tool such as VisionLib offer a cost-effective solution if CAD data can be used for part positioning and path planning. Since CAD data is not available for all product variants, this approach is unlikely to work.

Handheld scanners like the EinScan Pro are cheaper, offer good precision, but are more complex to integrate into an automated system.

Any vision system in a painting application needs to be protected from paint particles, for example with air curtains, shutters, or physical separation of scanning & paint application.

Industrial Robot & Automation

As a first step, we would recommend using an existing industrial robot with a spray-painting attachment, and a retro-fitted scanner. A subset of products reach this robot painting station, suspended from a ceiling-mounted conveyor system.

The products need to be mounted in a rotating jig or on a turntable, to allow the robot to access all surfaces.

Alternatively, the robot itself could move on a linear axis. Combined with the movement of the conveyor, the robot could also reach all surfaces of the products in two steps.

Additionally, the robot needs to be integrated into the path planning with a PLC, and there needs to be a safety concept for automated operation.

Path Planning

The path planning algorithm can be implemented using a combination of geometric analysis and AI-based techniques.

Initially, the algorithm could follow what workers do, by segmenting the part geometry into different surface types and applying appropriate painting strategies for each type.

An AI-based path planning algorithm could be trained on a synthetic dataset of part geometries and a simplified physics model of the paint application, using reinforcement learning to optimize for uniform coverage and minimal overspray.

Even further down the line, new visual foundational models like V-JEPA 2 could simplify the approach by directly predicting optimal painting paths from a 3D camera feed.

Simulation, Training, and Synthetic Data

Developing a classic algorithm, or training an AI-based path planning algorithm requires a simulation environment, a physical model of the paint application, and a dataset of part geometries.

Approach

We propose an iterative approach, under the assumption that the manual painting process can be automated with a combination of simulation, classic path planning algorithms, and AI-based image segmentation.

Virtual Environment & Path Planning

Build foundation for algorithm development and testing without hardware.

• Interview two expert painters, as well as automation experts with an automotive background from Motius' network

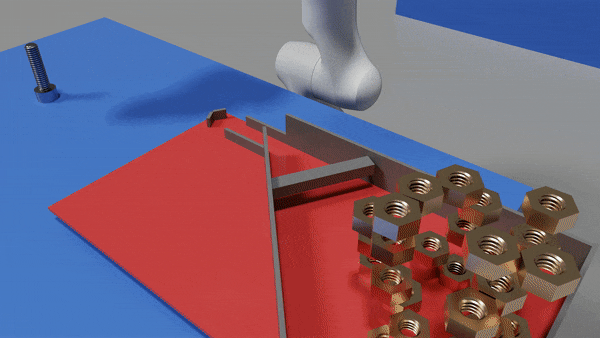

• Create high-fidelity simulation using NVIDIA Isaac Sim or similar
• Import representative geometries with all typical geometry types from the CAD database
• Implement a simple, cone-based paint flow simulation and surface coverage calculation
• Develop geometry-based algorithm using surface segmentation approach
• Validate coverage quality and cycle times in simulation
  • Physics based vision simulation using Isaac Sim sensors
  • Realistic robotic arm control in ROS2 and MoveIt

Deliverables: Working simulation environment, initial path planning algorithm, coverage metrics

Physical Prototype

Prove concept with real hardware in controlled environment.

• Assemble test cell with industrial robot, turntable, and 3D scanner
• Implement 3D scanning stage and post-processing of the point cloud data
• Port parts of the ROS2-based control into the robot PLC
• Iteratively improve path planning based on real-world results

Deliverables: Working lab prototype, validated path planning algorithms, initial safety protocols

Pilot Line Integration

Goal: Deploy industrial-grade system in the production environment.

• Interface with existing manufacturing execution systems
• Train personnel for system operation and maintenance
• Fine-tune performance

Deliverables: Pilot production line, trained operators, validated quality metrics

Scope of the Project

For the first project, our team will set up a virtual environment with physics-based simulation of the sensor and painting process. In this environment, the team will develop a path planning algorithm that gets executed on a simulated industrial robot.

The goal is to show that such a path planning algorithm can be developed in a short time period, and that it can recreate the manual painting process by segmenting products into different geometries and painting them accordingly.

ROI Analysis

The following analysis is meant to provide a rough estimate of the ROI for automating the painting process. The costs for an automated system are based on our experience in similar robotics & AI projects.
